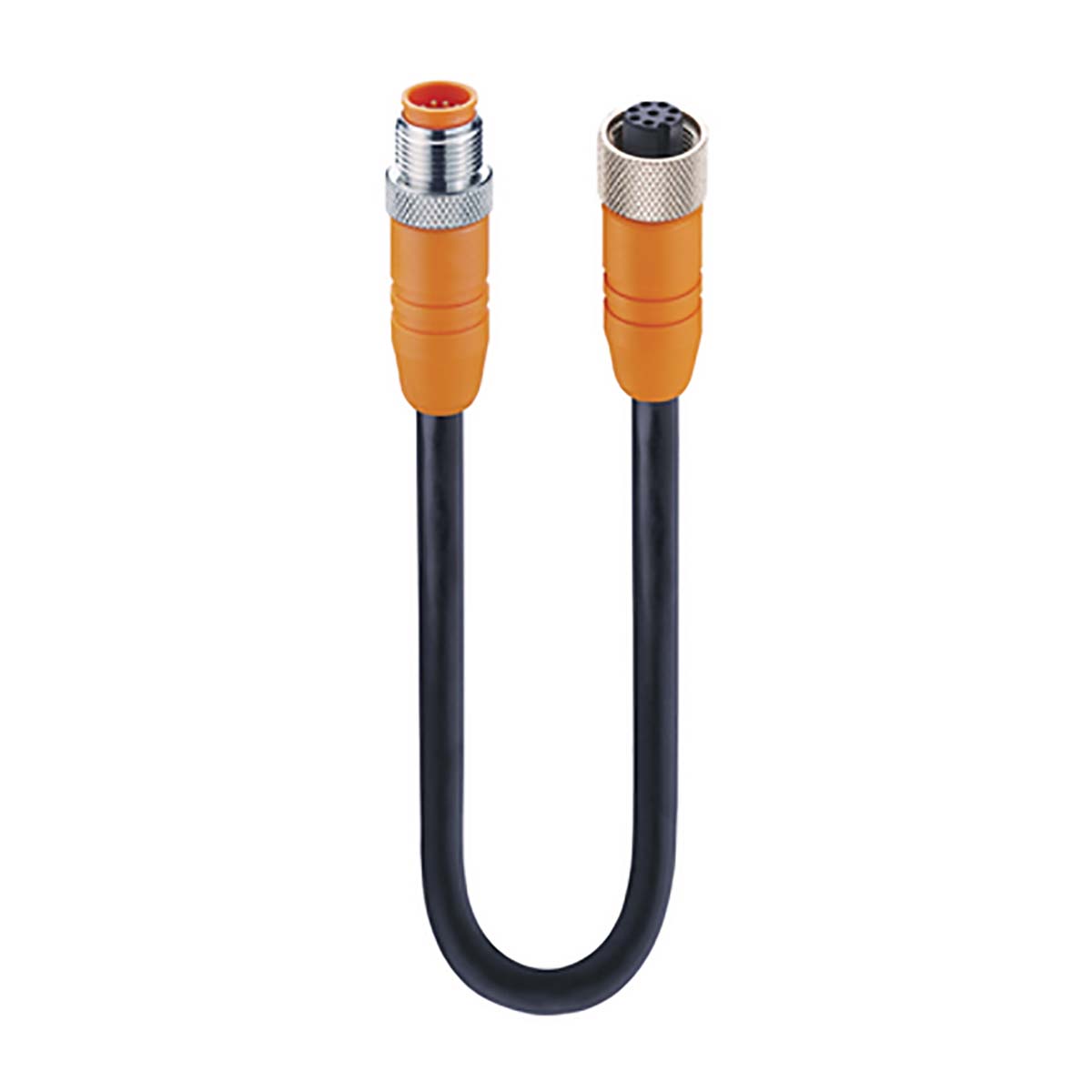

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | RSTS |
| Cross Sectional Area | 0.25 mm² |
| Number of Cores | 8 |
| Sheath Colour | Black |
| Sheath Material | PUR |
| Length | 1m |
| Connector 1 Number of Contacts | 8 |
| Connector 1 Gender | Male |
| Connector 1 Orientation | Straight |
| Connector 1 | M12 |
| Connector 2 Orientation | Straight |
| Connector 2 Gender | Female |
| Connector 2 Number of Contacts | 8 |
| Connector 2 Housing Gender | Female |
| Connector 2 | M12 |
| Coding | A |
| Shielding | Tinned CuZn |
| Shielded/Unshielded | Shielded |
| Current Rating | 2 A |
| Voltage Rating | 30 V |
| IP Rating | IP65, IP67, IP69K |
| Maximum Operating Temperature | +90°C |
| Connector 1 Housing Gender | Male |
| Fire Behaviour | Halogen Free |
| Operating Temperature Range | -40 → +90 °C |
| Insulation Material | PP |
| Minimum Bend Radius | 5 x D |
| Conductor Material | Copper |
| Outer Diameter | 6.60mm |
| Oil Resistant | Yes |
| Minimum Operating Temperature | -40°C |
| Standards Met | UL |
T4171310504-001
SIM-M12-8GD-5-PU
DOL-1204-W02MRN
17735 RST 4-RKWT/LED P 4-225/10 M
