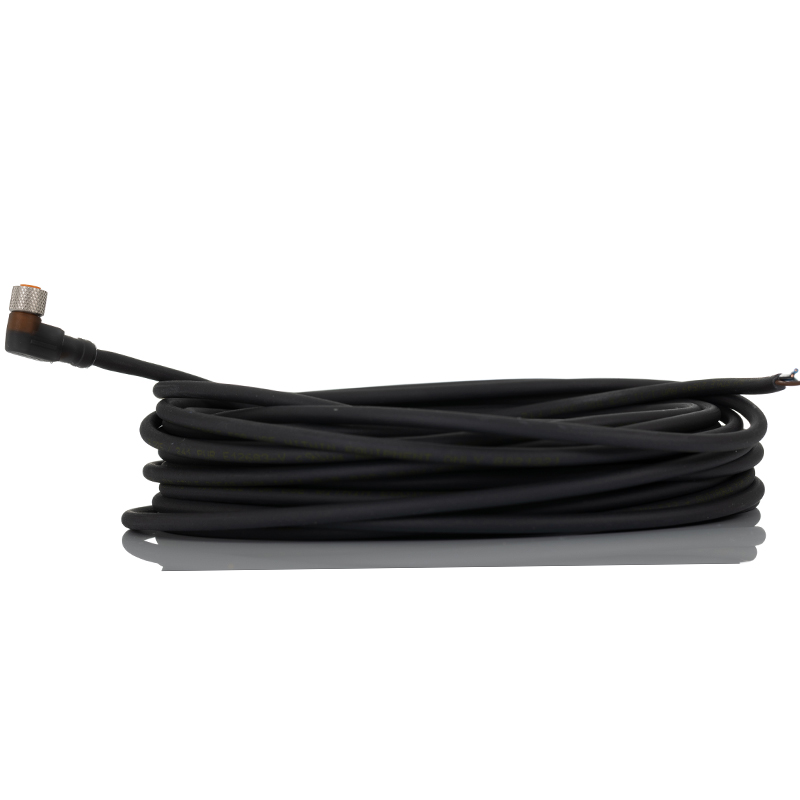

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | RKMWV |
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 3 |
| Sheath Material | Polyurethane PUR |
| Sheath Colour | Black |
| Length | 10m |
| Connector 1 Gender | Female |
| Connector 1 Number of Contacts | 3 |
| Connector 1 Orientation | Right Angle |
| Connector 1 | M8 |
| Connector 2 | Unterminated |
| Coding | A |
| Shielding | Unshielded |
| Shielded/Unshielded | Unshielded |
| Voltage Rating | 60 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP67, IP69K |
| Maximum Operating Temperature | +90°C |
| Conductor Material | Copper |
| Minimum Bend Radius | 5 x D (Fixed Inst), 10 x D (Flexible Inst) |
| Conductor Resistance | 10 mΩ |
| Outer Diameter | 4.3mm |
| Minimum Operating Temperature | -40°C |
| Fire Behaviour | Halogen Free |
| Insulation Material | PP |
| Operating Temperature Range | -40 - +90 °C |
| Number of Strands | 3 |
| Oil Resistant | Yes |
| Standards Met | IEC 61076-2-104 |
| Cable Shape | Round |
