คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|

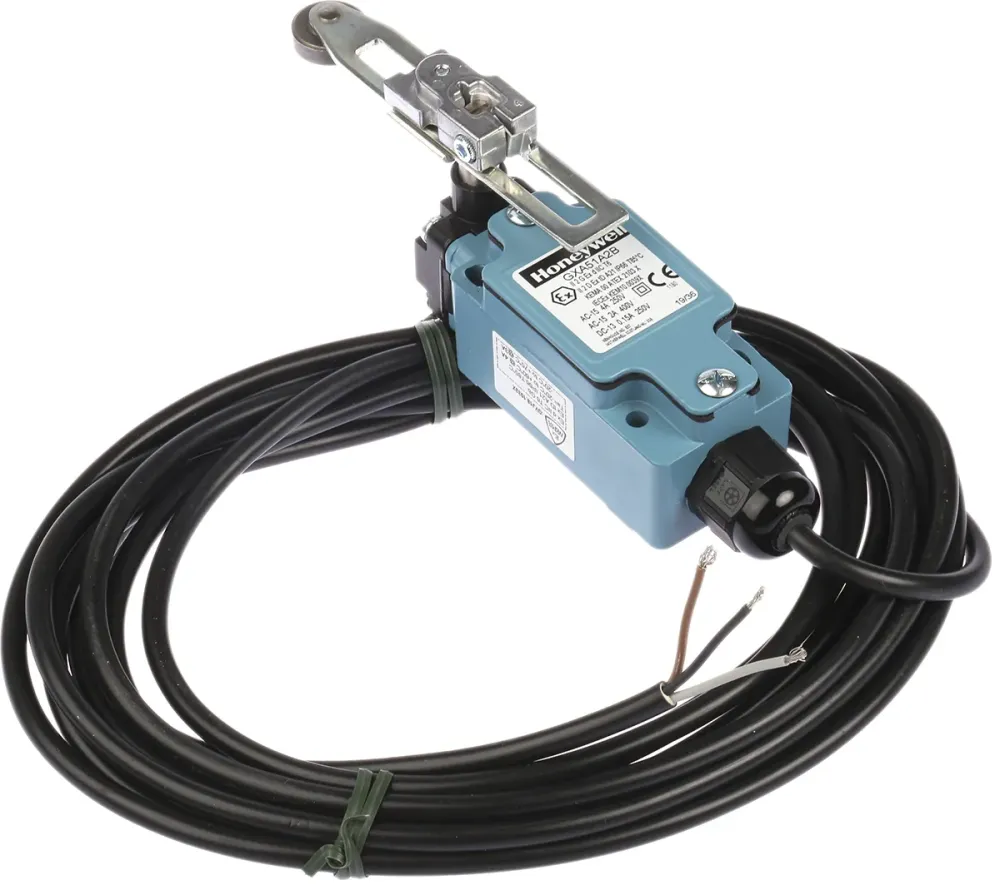

| Actuator Type | Rotary Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66, IP67 |
| Maximum Current | 4 A |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 250V |
| Series | GXA |
| Contact Type | Snap Action |
| Terminal Type | Wire Lead |
| Length | 102.9mm |
| Width | 42mm |
| Dimensions | 102.9 x 42 x 62.4 mm |
| Hazardous Area Certification | ATEX |
| Maximum Operating Temperature | +75°C |
| Depth | 62.4mm |
| Minimum Operating Temperature | -20°C |
