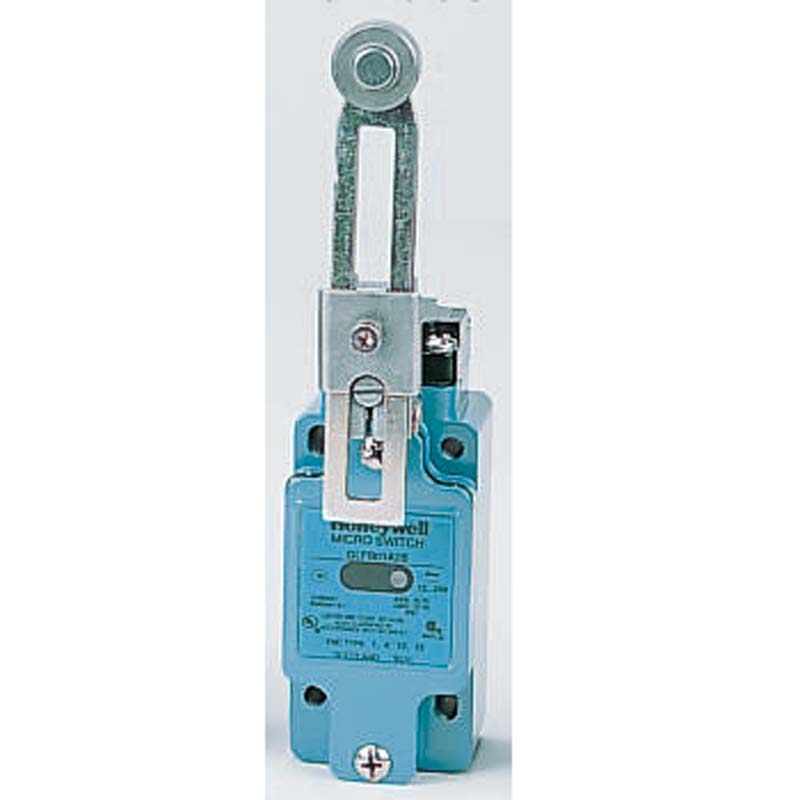

คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|
| Actuator Type | Rotary Lever |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP67 |
| Maximum Current | 10 A |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 250V |
| Maximum DC Voltage | 250V |
| Series | GLF |
| Contact Type | Snap Action |
| Terminal Type | PG13.5 Connector |
| Length | 145.8mm |
| Width | 42mm |
| Mechanical Life Minimum | 15000000 cycles |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -25°C |
| Dimensions | 145.8 x 42 x 42 mm |
| Depth | 42mm |
