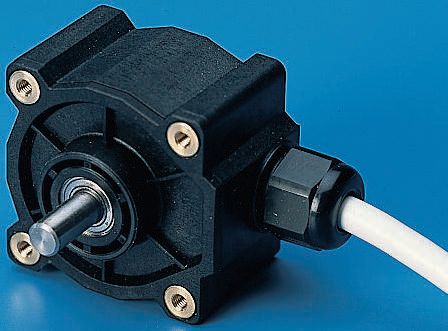

รายละเอียดสินค้า / Product Details
| Supply voltage: | 10 → 30 Vdc |
| Consumption: | 30 mA at 24 V dc |
| Output stages: | Push-pull protected against short circuits |
| Channel count: | 3 channels (A,B,Z) + NPN open collector alarm output |
| Signals: | square with a duty cycle of 1:1 |
| Maximum frequency: | 200 kHz |
| Shaft diameter: | 6 mm, length 12.5 mm |
| Max. rotation speed: | 10,000 rpm |
| Max. loads on the shaft: | radial 30 N, axial 15 N |
| Dimensions of body (without shaft): | area 39 mm, depth 29 mm |
| Front face: | centring shoulder area |
| Operating temperature: | –10 °C → +60 °C |
| Protection index: | housing IP 50, wheels IP 40 |
| Connection: | 1.5 m radial cable |
