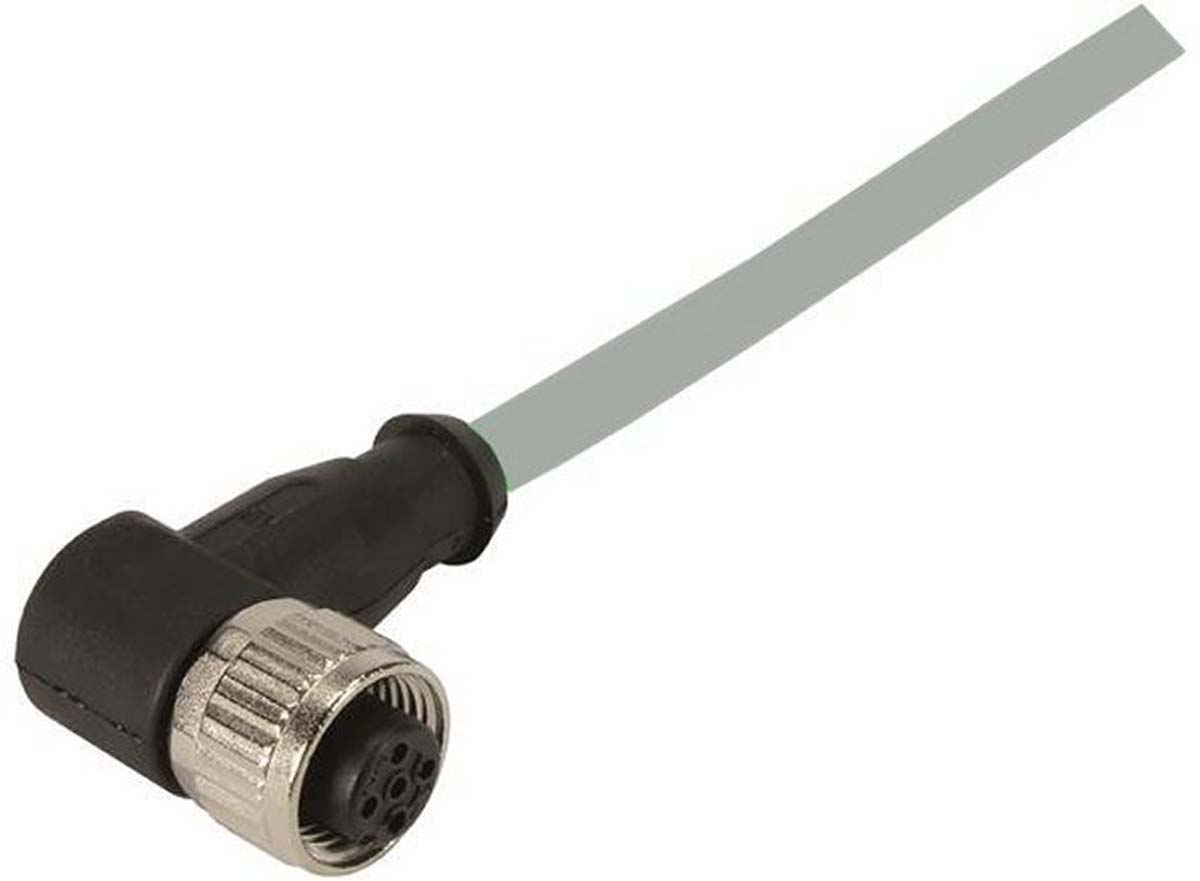

คุณสมบัติ | รายละเอียด |
|---|---|
| Series | 2134 |
| Cross Sectional Area | 0.34 mm² |
| Number of Cores | 3 |
| Length | 10m |
| Sheath Material | PUR |
| Sheath Colour | Grey |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Orientation | Right Angle |
| Connector 1 | M12 |
| Connector 1 Gender | Female |
| Connector 2 | Unterminated |
| Coding | A |
| Shielded/Unshielded | Unshielded |
| IP Rating | IP67 |
| American Wire Gauge | 22 AWG |
| Maximum Operating Temperature | +80°C |
| Cable Shape | Multicore |
| Operating Temperature Range | -25 - +80 °C |
| Standards Met | IEC 61076-2-101, ISO/IEC 11 801, ISO/IEC 24 702, RoHS Compliant |
| Minimum Operating Temperature | -25°C |
| Connector 1 Housing Gender | Female |
643631120308
BCC M314-0000-10-003-VX8434-050
BCC M415-0000-1A-003-VX8434-100
