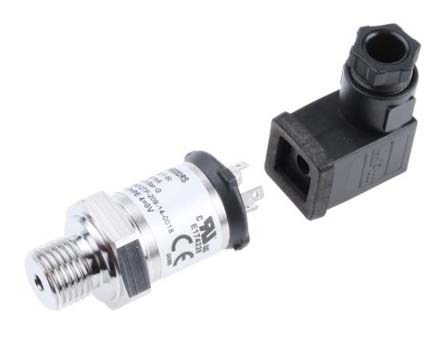

รายละเอียดสินค้า / Product Details
| คุณสมบัติ | Value |
|---|---|
| Pressure Reading Type | Gauge |
| Minimum Pressure Reading | 0bar |
| Maximum Pressure Reading | 60bar |
| Accuracy | 0.25 % |
| Output Type | Analogue |
| Process Connection | BSP 1/4, G 1/4 |
| Electrical Connection | 9.4 mm DIN Connector |
| Analogue Output | 0 → 5 V |
| Response Time | 1 ms |
| Maximum Current | 2 (Sink & Source) mA |
| Supply Voltage | 8 → 30 V dc |
| Housing Material | 17-4 PH Stainless Steel (Wetted Part) |
| IP Rating | IP65, IP67 |
| Series | 3100 |
| Maximum Operating Temperature | +125°C |
| Mounting Type | Threaded |
| Minimum Operating Temperature | -40°C |
