คุณสมบัติ | รายละเอียด |
|---|---|
| Port Connection | G 3/8 |
| Maximum Operating Pressure | 10 bar |

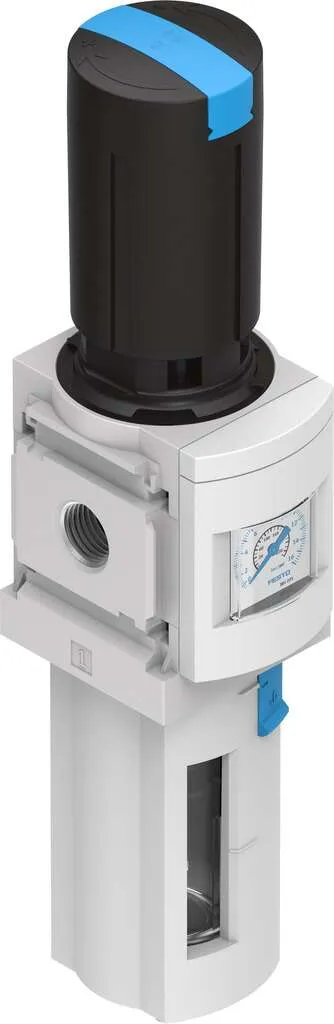

| Manufacturer Series | MS6-LFR |
| Drain Type | Manual |
| Filtration Size | 40µm |
| Pressure Gauge Port | G 3/8 |
| Pressure Gauge Port Thread Size | 3/8 in |
| Port Connection Thread Size | 3/8 in |
| Maximum Ambient Operating Temperature | +60°C |
| Minimum Process Operating Temperature | -10 °C, 0 (UL) °C |
| Minimum Operating Pressure | 0.8bar |
| Bowl Material | Plastic |
| Proof Pressure | 0.5 to 12bar |
| Port Connection Thread Standard | G |
| Pressure Gauge Port Thread Standard | G |
| Minimum Ambient Operating Temperature | -10°C |
| Ambient Operating Temperature Range | -10 to +60°C |
| Maximum Process Operating Temperature | +50 (UL) °C, +60 °C |
| Process Operating Temperature Range | 0 to +50 (UL) °C, -10 to +60 °C |
