คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|

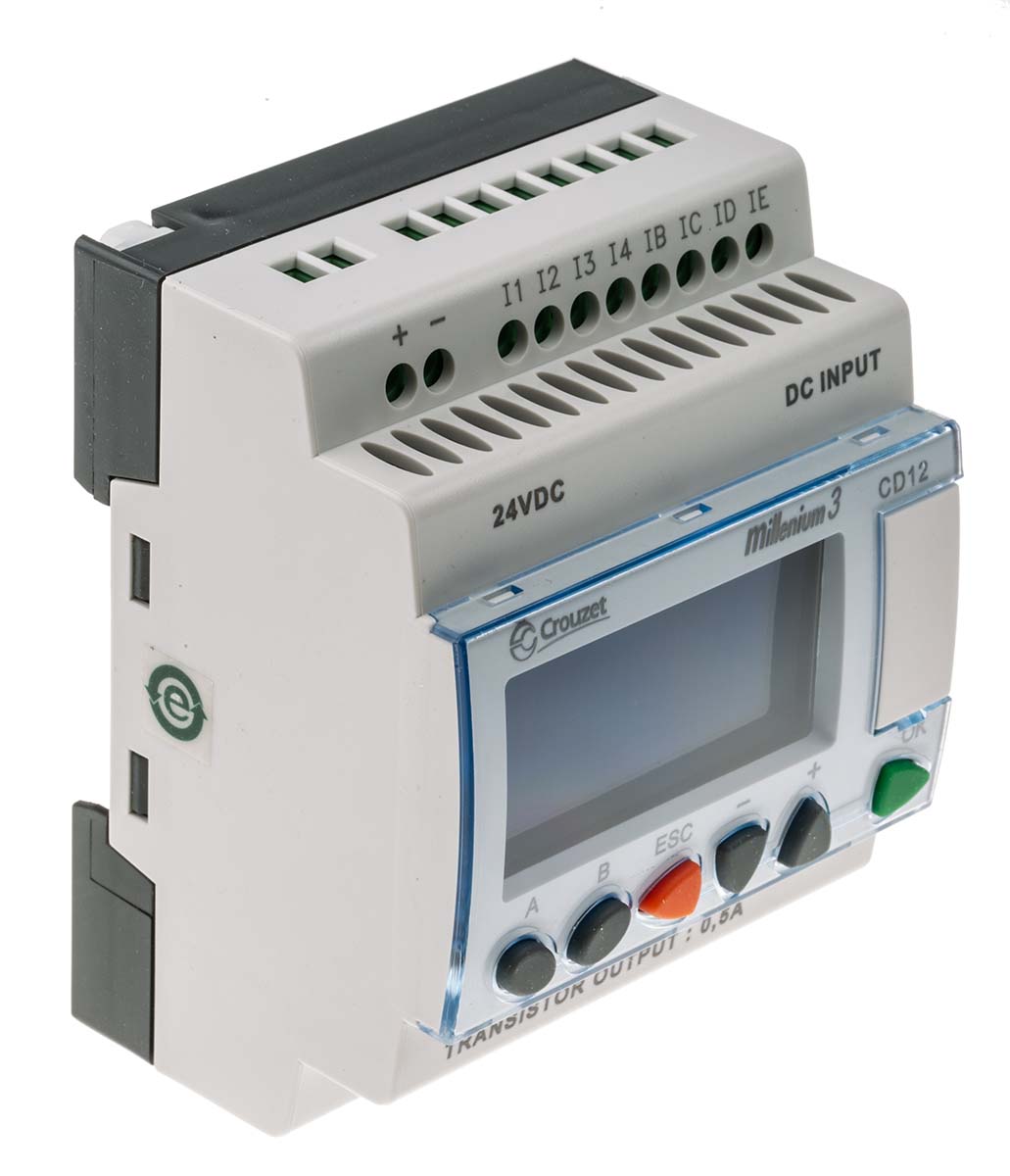

Series | Millenium 3 |
Supply Voltage | 24 V dc |
Output Type | Transistor |
Number of Outputs | 4 |
Input Type | Digital |
Number of Inputs | 8 |
Communication Port Type | Serial, USB |
Mounting Type | DIN Rail |
Display Included | Yes |
Width | 71.2mm |
Depth | 68mm |
Length | 100mm |
Dimensions | 100 x 71.2 x 68 mm |
Termination Type | Screw |
Programming Interface | Front Panel |
Number of Communication Ports | 2 |
Program Capacity | 368 bits |
Programming Language Used | FBD, Ladder Logic, SFC |
Module Type | Logic Control Module |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +55°C |
Output Current | 500 mA |
CAD Drawing | 3D CAD Model |
