คุณสมบัติ | รายละเอียด |
|---|---|

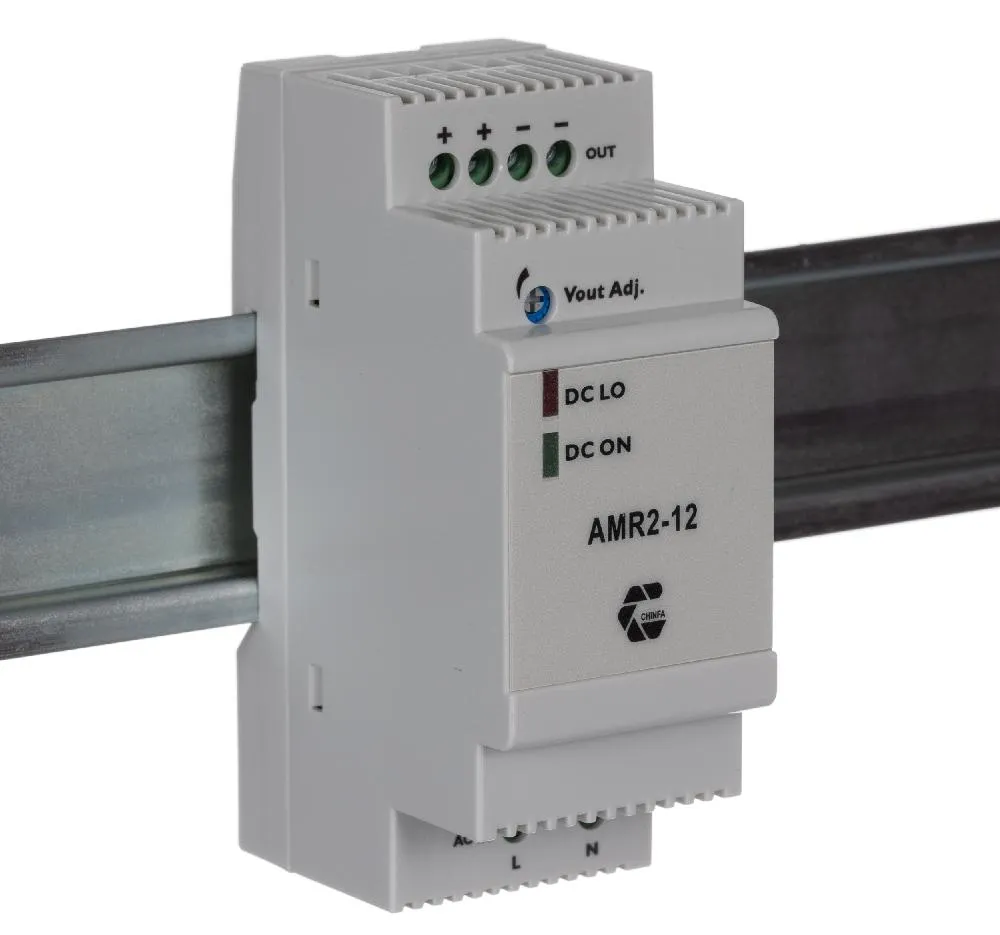

| Series | AMR2 |
| Type | Switched Mode |
| Electrical Phase | 1 |
| AC or DC Input Voltage | ac |
| Number of Outputs | 1 |
| Input Voltage | 90 - 264V ac |
| AC or DC Output Voltage | dc |
| Output Voltage | 12V dc |
| Output Current | 2A |
| Power Rating | 24W |
| Dimensions | 35 x 56.5 x 91mm |
| Height | 91mm |
| Depth | 57mm |
| Width | 56.5mm |
| Minimum Temperature | -40°C |
| Mounting Type | DIN Rail Mount |
| Load Regulation | ±1% |
| MTBF | 798000h |
| Maximum Temperature | +71°C |
| Standards Met | EN 55032, EN 62368-1, UL 62368-1, UL508 |
| Ripple And Noise | 50mV |
6AG19613BA214AX0
TSP 180-124 EX
1SVR427043R1200 CP-D 12VDC/2.1A
