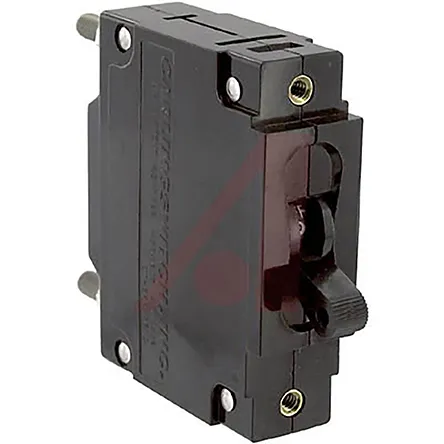

คุณสมบัติ | รายละเอียด |
|---|---|
| Current Rating | 10A |
| Number of Poles | 1 |
| Voltage Rating | 240V |
| Series | C |
| Application | General Purpose |
| Tripping Mechanism | Hydraulic-Magnetic |
| Reset Actuator Type | Handle |
| Rated AC Voltage | 240V |
| Mounting Style | Panel Mount |
| Rated DC Voltage | 150V |
| Break Time | Medium |
| Overall Length | 19.2mm |
| Terminal Contact Type | Stud |
| Overall Depth | 64.5mm |
| Special Features | The UL489 C-Series Employs A Unique Arc Chute Design Which Allows For Higher Interrupting Capacities Of Up to 10,000 Amps. New Thermoset Glass Filled Polyester Half Shell Construction Provides For Increased Mechanical and Electrical Strength |
| Mounting Hole Size | 19.3 x 52.37mm |
| Overall Dimensions | 19.18 x 63.5 x 64.53mm |
| Circuit Breaker Type | Thermal Magnetic Circuit Breaker |
| Breaking Capacity at Maximum Voltage Rating | 10000 A @ 277 V ac, 5000 A @ 125/250 V dc |
