คุณสมบัติ / Specifications
| คุณสมบัติ | รายละเอียด |
|---|---|

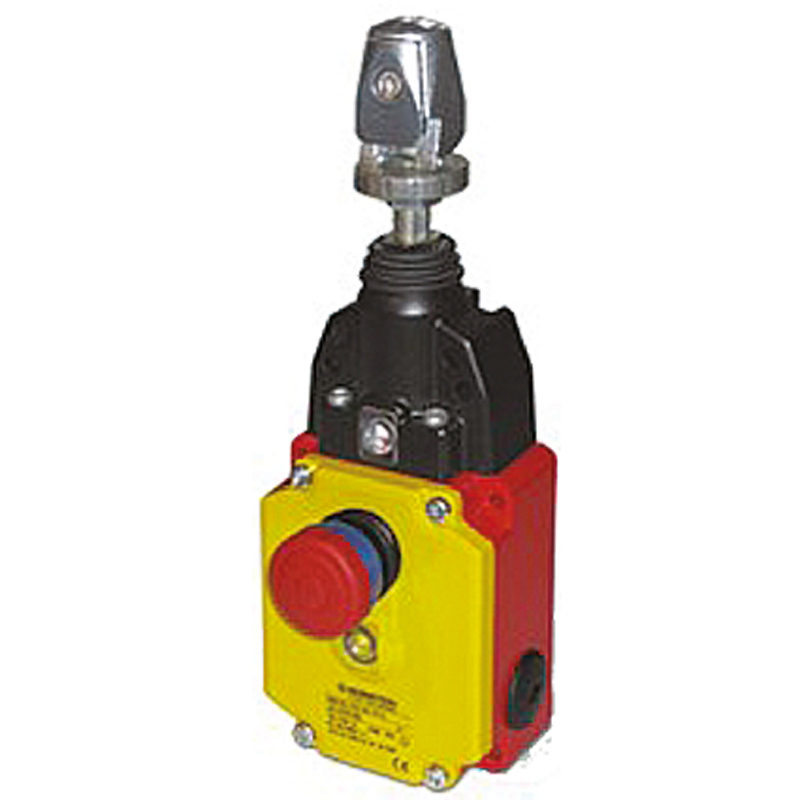

| Series | SRM |
| Reset Button | No |
| Pole Configuration | DP |
| Normal State Configuration | 2NC/2NO |
| Mounting Orientation | Straight |
| Maximum Rope Span | 37.5m |
| Maximum Current | 4 A ac, 550 mA dc |
| Maximum AC Voltage | 240V |
| Maximum DC Voltage | 250V |
| Housing Material | Die Cast Aluminium |
| Number of Cable Entries | 3 |
| Size of Cable Entries | M20 x 1.5 |
| Length | 282mm |
| IP Rating | IP67 |
| Width | 90mm |
| E-Stop Button | No |
| Maximum Operating Temperature | +80°C |
| Dimensions | 282 x 90 x 88 mm |
| Depth | 88mm |
| Minimum Operating Temperature | -30°C |
