คุณสมบัติ | รายละเอียด |
|---|---|

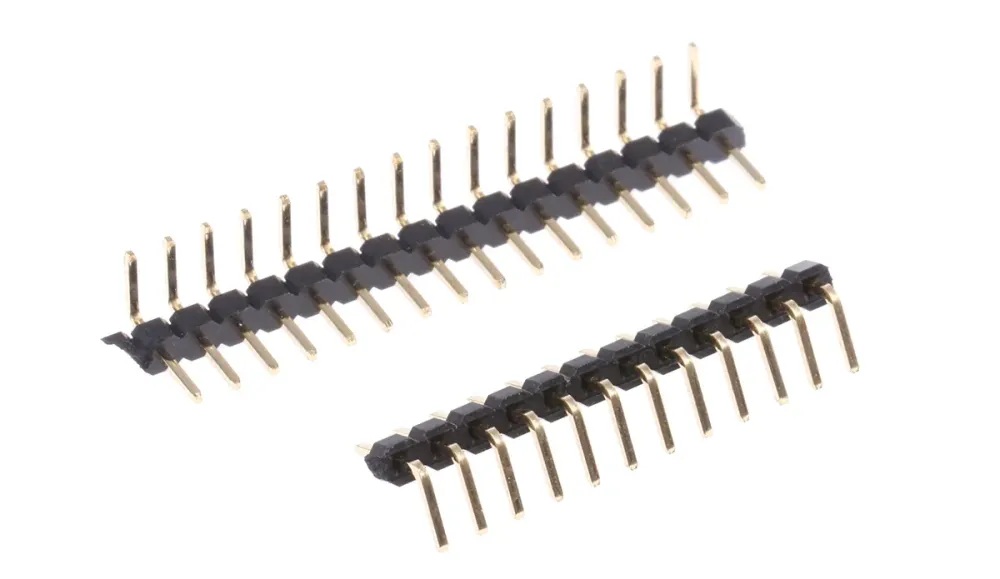

| Series | M22 |
| Pitch | 2.0mm |
| Number of Contacts | 50 |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board to Board |
| Mounting Type | Through Hole |
| Termination Method | Solder |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Current Rating | 1.0A |
| Tail Pin Length | 3.0mm |
| Mating Pin Length | 3.5mm |
